Soda Slips

In this series of slip tests, soda ash was mixed with hot water to create a liquid solution of soda ash. This solution was poured into a weed sprayer and injected through 24 holes in the sides of the kiln. This takes about 10 minutes and requires 3 pounds of soda ash for this kiln.  A steel brake line tube can be fitted to the brass tube that comes with the weed sprayer. A compression fitting is used to attach the two sections of tubing and the tip of the steel tube that enters the kiln is crimped to create as much of a spray as possible. The steel tube is inserted into the kiln to about half way into the kiln. The solution is then introduced into the kiln by squeezing the trigger of the weed sprayer. With a count of 5, I slowly remove the steel tube to disribute the solution over the kiln shelf. After the solution is introduced throughout all 24 soda ports, the kiln can be placed into a heavy reduction for 20 minutes for the purposes of carbon trapping the soda. When cone 10 is starting to bend, I put the kiln in neutral for the remainder of the firing.  Any residual soda solution must be rinsed out for it solidifies upon cooling.

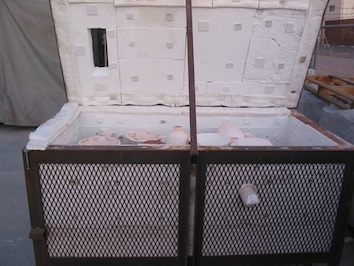

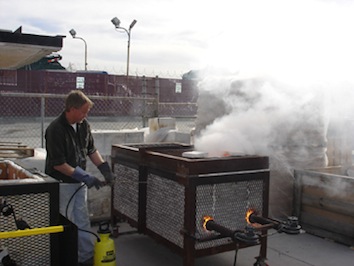

2007-Steve Davis-Soda Ash Firing-March 3-4, 2007-13-358    Coffin Kiln

The burner system is a double blower set up that fires on 3 pounds of propane pressure. A clear path in front of each blower burner is open down the length of the two side walls. Flames and heat to travel to the back of the kiln and then over the top of the upper wares and exits through the lid flue.

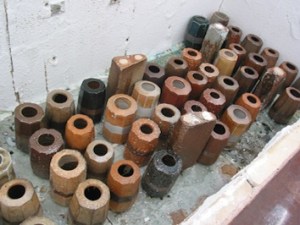

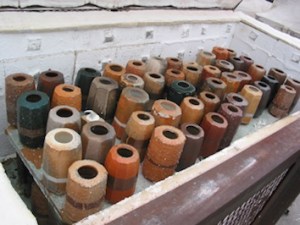

Soda Test Bottom    Soda Test in Kiln

The slips were applied on greenware and bisque fired to cone 04. They were then wadded with a 50/50 mixture of Tile #6 kaolin and alumina hydrate and placed on the shelves between the soda injection holes. White glue was used to hold the wads in place.

SLIPS

There are 4 different clay bodies shown below. They are Aardvark Clay’s Nara Porcelain, Woodfire, and Black Mountain. The last of 4 clays is Grogzilla from Clay Planet.

IMG_0044     IMG_0043     IMG_0041     IMG_0042

Johnson Flashing Slip / Grolleg – 50, EPK – 10, Newman Red – 10, Nepheline Syenite – 30

IMG_0021     IMG_0024     IMG_0022     IMG_0023

Steve’s Orange / Grolleg – 70, Newman Red – 10, Nepheline Syenite – 20

IMG_0039     IMG_0037     IMG_0038     IMG_0040

Van Gilder Yellow to Gold / EPK – 80, Nepheline Syenite – 20, Soda Ash – 2

IMG_0033     IMG_0034     IMG_0036      IMG_0035

Fake Avery #5 / EPK – 74, Newman Red – 3, Nepheline Syenite – 24

IMG_0032     IMG_0029     IMG_0031     IMG_0030

Slip #1 / EPK – 50, OM4  Ball – 50, Borax – 6, Zircopax – 12.5

IMG_0025     IMG_0027     IMG_0026     IMG_0028

Davis Red / EPK – 70, Carbondale Red – 10, Nepheline Syenite – 20

IMG_0016     IMG_0013     IMG_0014     IMG_0015

Fake Avery 2002 / MacNamee Kaolin – 70, Imco 800 – 5, Nepheline Syenite – 25

IMG_0009     IMG_0011     IMG_0012     IMG_0010

Tan / EPK – 50, Taylor Ball – 50

IMG_0005     IMG_0007     IMG_0008     IMG_0006

Smooth Orange / EPK – 40, OM4  Ball – 40, Borax – 5, Zircopax – 10

IMG_0001     IMG_0003     IMG_0004     IMG_0002

Orange / EPK – 35, OM4  Ball -50, Silica – 5, Nepheline Syenite – 10
